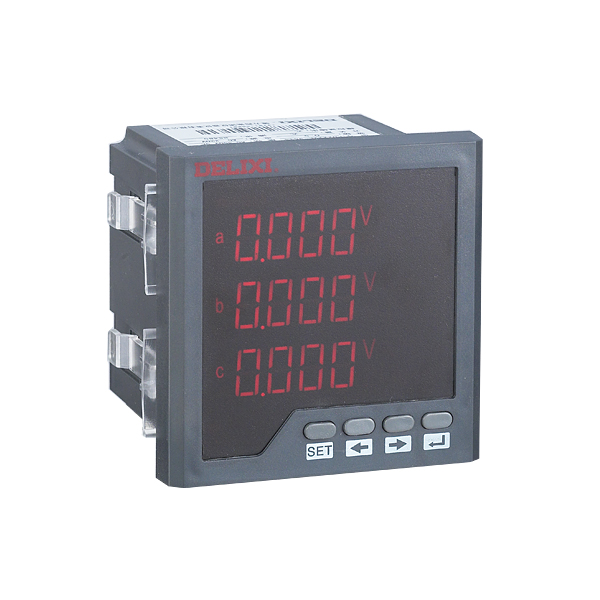

Model P□2222□-96□□ Mounted Programmable Digital Panel Meter
Category: Panel Meter
Print this page
Fav this page
E-mail us: yqyb@delixi.com
This product contains the following details
| Product Name | Input Method | Outline Dimensions | Variety Structure | Display Method | Range |
| P□ | □ | □ | □ | □ | □ |
|
PA: PA2222 Ammeter PZ: PZ2222 Voltmeter PP: PP2222 Frequency Meter PS: PS2222 Power meter PW: PW2222 Reactive Power meter PX: PX2222 Power Factor Meter |
L: AC C: DC | 96: 96×96 (mm) |
P: Measurement Display K: DO B: AO T: RS485 S: DO+RS485 D: AO+RS485 N: DO+AO+RS485 |
1: One-Row Digital Tube Display 4: Three-Row Digital Tube Display Y：Single-phase LED display3Y：Three-phase LED display
|
*: *A (V, Hz, W, var, COSΦ) Refer to Range Table for details |
Note: 1) DI refers to digital input & indication; DO refers to digital output & indication; AO refers to analog output
| Input Method | Type | Variety Structure |
| AC | Voltmeter, Ammeter, Frequency Meter, Power Meter, Reactive Power meter, Power Factor Meter | P: Measurement Display |
| K: Digital Output & Indication | ||
| B: Analog Output | ||
| T: RS485 Communication | ||
| DC | Voltmeter, Ammeter | S: Digital Output & Indication + RS485 Communication |
| D: Analog Output + RS485 Communication | ||
| N：Digital output & Indication + Analog Output + RS485 Communication |

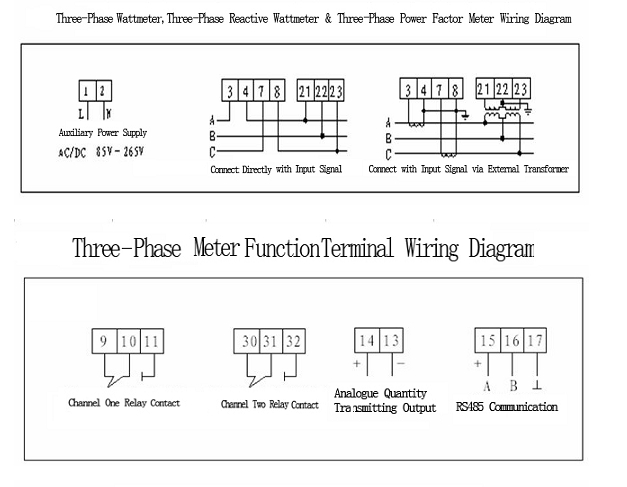

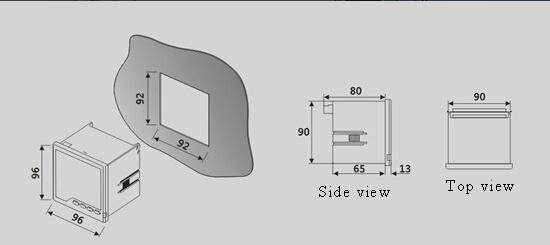

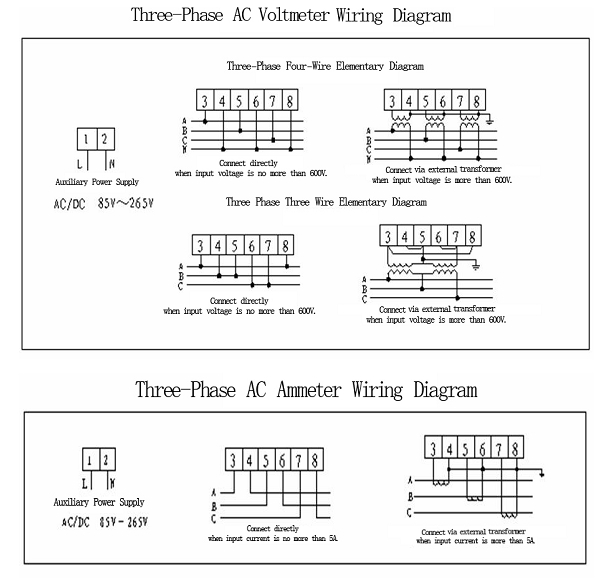

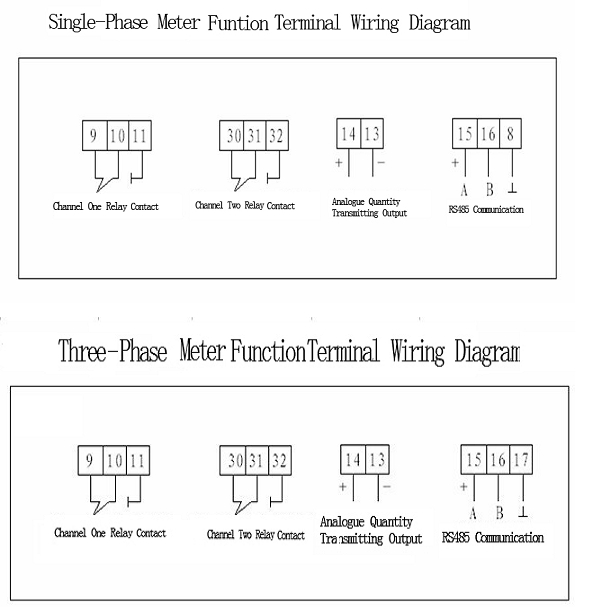

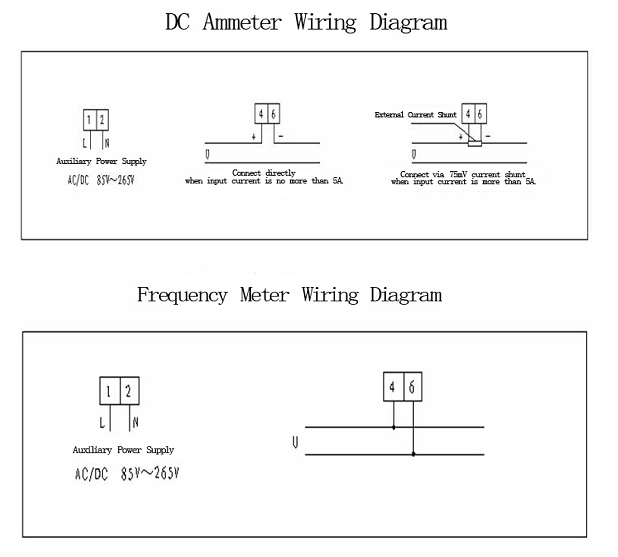

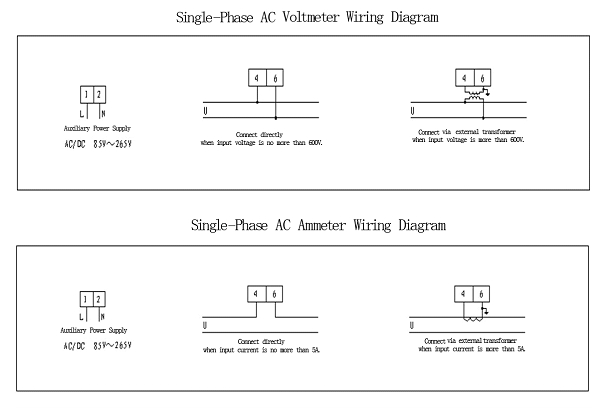

Range Table
| Current Range | Connect Directly with 0.1A～5A |
| Connect via 5A Secondary Current CT with 5A/5A～10kA/5A | |
| Voltage Range | Connect Directly with 3V～600V |
| Connect via 100V Secondary Voltage VT with 380V/100V～380kV/100V |
