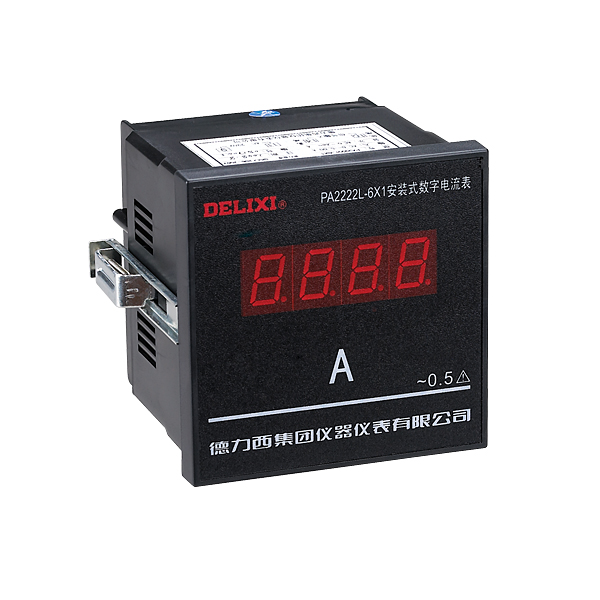

Type P□2222□-6X1 Mounted Digital-display Panel Meter
Category: Panel Meter
Print this page
Fav this page
E-mail us: yqyb@delixi.com
This product contains the following details
| Product name | Input method | Outline dimension | Code | Range |
| PA | L | 6 | X1 | * |
| PA:PA2222 Ammeter |
L: AC C: DC |

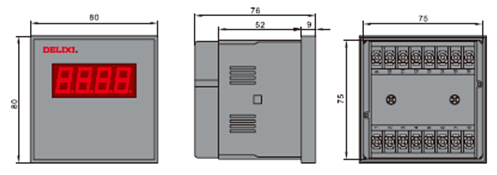

6:80×80(mm) | X1:Digital-display meter |
*: *A (V, Hz) Refer to Range Parameter Table |
| PZ:PZ2222 Voltmeter | ||||
| PP:PP2222 Frequency Meter |
| Input method | Type |
| DC | Ammeter, voltmeter |
| AC | Ammeter, voltmeter, Frequency Meter |
Range Parameter Table

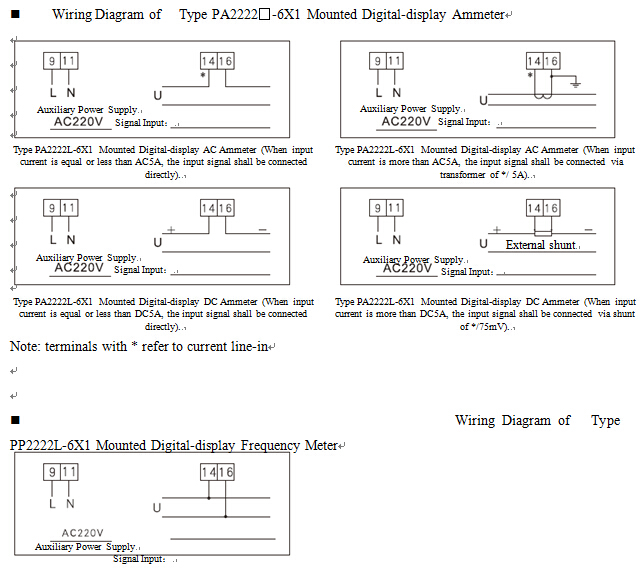

| Product type | Type | Range |
| DC ammeter |
PA2222C-6X1 |
Directly connect to 50μA～500μA |
| Directly connect to 1mA～500mA | ||
| Directly connect to 1A～5A | ||
| Connect to 5A～10k via external shunt | ||
| DC voltmeter |
PZ2222C-6X1 |
Directly connect to 3V～600V |
| Connect to 750V～1.5kV via external resistant | ||
| AC ammeter |
PA2222L-6X1 |
Directly connect to 0.1A～5A |

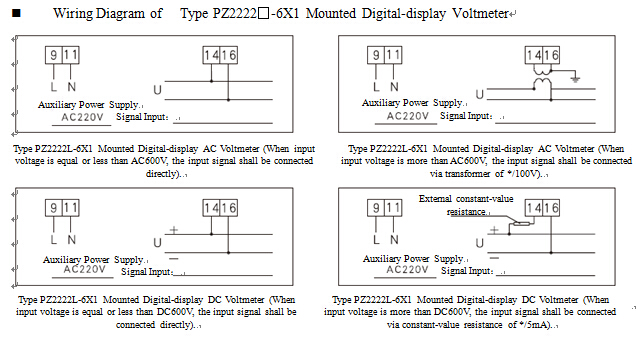

| Connect to 5A/5A～10kA/5A via 5A Secondary CT | ||
| AC voltmeter |
PZ2222L-6X1 |
Directly connect to 3V～600V |
| Connect to 380V/100V～380kV/100V via 100V Secondary VT | ||
| Frequency Meter |
PP2222L-6X1 |
45Hz～55Hz 55Hz～65Hz 45Hz～65Hz |
| 100V 220V 380V |
Order Information:
The ordering code for digital panel meter (AC input, ammeter, dimension: 80x80) is PAL6X1*.
