Products List

Home > Products

Gas Meter Energy meter Panel Meter Intelligent reactive power automatic compensating controller Electric meter box Phase and amplitude discriminating leakage relay

Products

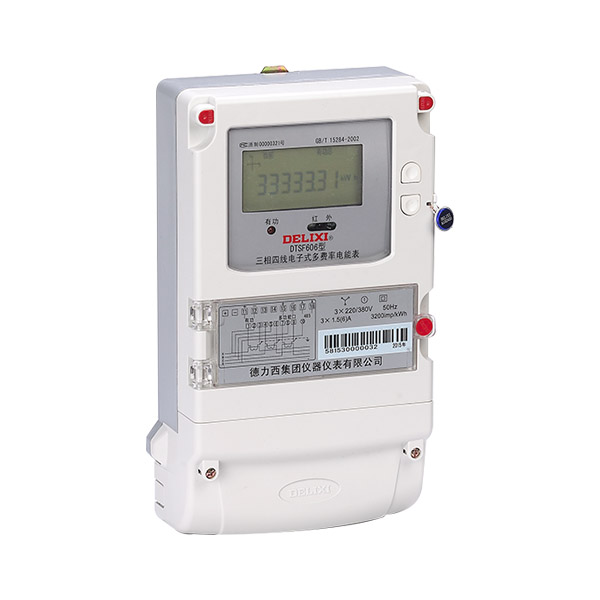

DTSF606、DSSF606 three phase multi-tariff electronic energy meter

Category: Energy meter

This product contains the following details

Product Name	Voltage	Accuracy class	1) Specifications	2) Function Option
DTSF606	MQ	1	6M4	H
DTSF606 DSSF606	MQ:220/380V WY:57.7/100V Y:100V Q:380V	1: Class 1 2: Class 2	6M4:1.5(6)A .100M3:30(100)A	H： connect via VT/CT Default: Direct connection
Name	Type	Reference Voltage (V)	Accuracy class	Basic Current (Max. Current) (A)
Three-phase four-wire multi-tariff electronic energy meter	DTSF606	3×220/380	1, 2	1.5(6), 3(6), 5(20), 5(60), 10(40), 10(60), 15(60), 20(80), 10(100), 30(100)

		3×57.7/100
Three-phase three-wire multi-tariff electronic energy meter	DSSF606	3×380	1, 2	1.5(6), 3(6), 5(20), 5(60), 10(40), 10(60), 15(60), 20(80), 10(100), 30(100)

		3×100		1.5(6), 3(6)

Certificate	ZZ No. 00000321
National Standard	GB/T 15284, GB/T 17215.321
Industry Standard	DL/T 645
Current Specifications A	3×1.5(6), 3×3(6), 3×5(20), 3×5(60), 3×10(40), 3×10(60),3×10（100），3×15（60），3×20（80），3×30（100）
Reference Voltage V	3×57.7/100, 3×220/380（three phase four wire)
Reference Voltage V	3×100, 3×380(three phase three wire)
Accuracy class (Class)	1, 2
Power Consumption	Power Consumption of Voltage Circuit≤2W/5VA, Power Consumption of Current Circuit≤1VA
Communication baud rate	RS485 port: 1200bps-9600bps
battery voltage of data backup	3.6V DC
daily timing error	≤0.5s/d (23℃)
battery capacity	≥1200mAh
storing time of data after power interruption	≥10 years (with new battery)
